Reed Instruments Coating Thickness Gauge, 1250Um/50 Mils

Original price was: $257.95.Current price is: $96.99.

Safe and Secure Payments, Always

Safe Payments, Happy Customers

Satisfaction Guaranteed

Multiple payment options for secure shopping with SSL

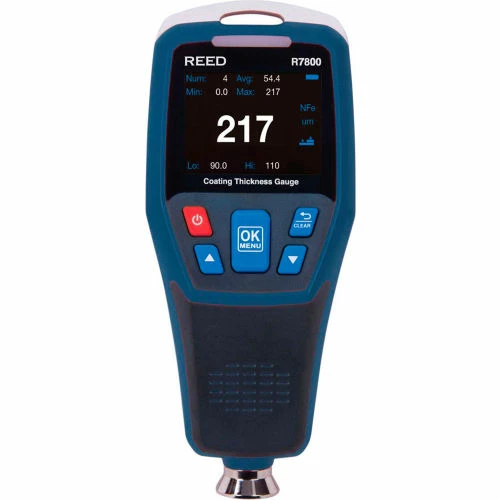

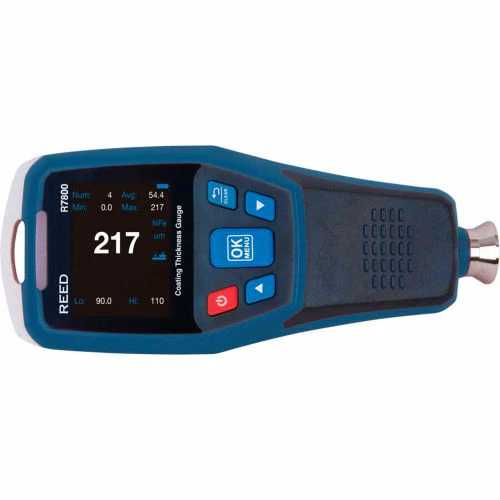

This coating thickness gauge is designed for non‐invasive coating thickness measurements. The R7800 features zero or two point calibration, user adjustable high/low alarms and a USB interface to further analyse results in the included software.

Features:

Automatically detects ferrous and non-ferrous substrates
Easy-to-read color LCD display
360° screen rotation allows users to view measured readings from any angle
Durable gauge and probe construction
Zero and two-point calibration ensures measurement accuracy
Single or multi-point mode allows a user to set tolerances and quickly identify whether a coating passes or fails
Tri-color LEDs quickly indicate when measurements are below (red), above (yellow) or within set parameters (green)
Internal memory stores up to 500 groups of data
View stored data, charts or real-time measurement with software
Low battery indication and auto shut off

Weight	0.4 lbs
Accuracy (Metric)	0 to 1250µm: ±3% +1µm
Brand	REED Instruments
Batteries	AA (x2)
Manufacturers Part Number	R7800
Description	Coating Thickness Gauge
Package Quantity	1
Style	Ultrasonic
Data Output	Yes
Min Measurement	0.1
Accuracy	0 to 49.21mils: ±3% +0.04mils mil
Color Family	Blue
Digital	Yes
Length	5-29/32 in
Width	2-39/64 in
Max Measurement	49.2
Height	1-2/5 in
Certifications	CE
