- Absolute Encoder ensures all settings and readings maintained for the life of the battery (even when the power is turned off)
- Preset, Zero-Set, inch/mm, +/- direction and GO/±NG functions. SPC output
- Face rotates 330° for use at various angles
- Calculation function f(x)=Ax allows the spindle reading to be multiplied by a constant (ie. 2X or .5X)
- Average battery life 7,000hours using SR-44 battery

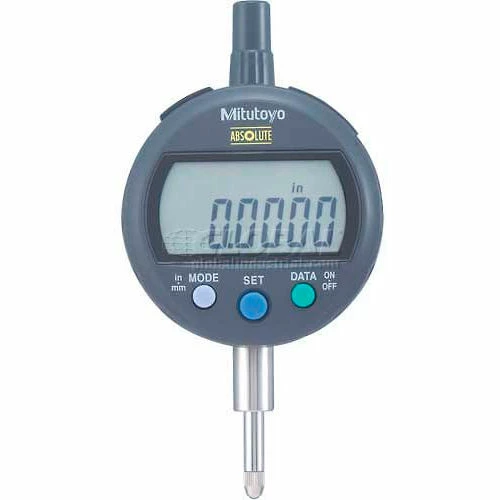

Mitutoyo 543-402B ID-C Series 0-.5" / 0-12.7MM Digimatic Electronic Indicator W/ Flat Back
$308.95 Original price was: $308.95.$96.99Current price is: $96.99.
SKU: Mitutoyo WBB611465 Categories: Measurement & Layout Tools, Test Indicators Tags: .90, 543-402B, Battery, Digital, IP42, Mitutoyo, Tools & Instruments, Yes
- Safe and Secure Payments, Always
- Safe Payments, Happy Customers
- Satisfaction Guaranteed
- Multiple payment options for secure shopping with SSL

.0005″/0.01mm X .500″ IDC Digimatic Indicator, Flat Back
| Data Output Cable - 80 Inch | 905409 in |
|---|---|
| Battery Type | SR44 |
| Lug or Flat Back | Flat |
| Back Type | Flat |
| UPC | 603908512455 |
| Fraction Option | No |
| Accuracy (+/-) | 0.001 in |
| Style | ID-C |
| Data Output | Yes |
| Series | ID-C |
| Measuring Face Material | Stainless Steel |
| Digital | Yes |
| Type | Electronic Indicator |
| Brand | Mitutoyo |
| Metric or Inch | Inch,Metric in |
| Manufacturers Part Number | 543-402B |
| IP Rating | IP42 |
| Measuring Force (N) | .90 |
| Mechanical Or Digital | Digital |
| Power Source | Battery |
| Case | Yes |
| Range | .5 in |
| Resolution/Graduation | 0.0005 in |
| Max Measurement | 12.7 in |
| Min Measurement | 0 in |
| Data Output Cable (40") | 905338 in |
| Min Outside Diameter | IP42 in |
| Long Form Calibration Certificate Included | No |
